HOW THIS CONSOLE
WAS BUILT

THE CONCEPT

The brief was a single feeling: glancing into NASA's night shift. Not a landing page about a mission — the console itself, alive and indifferent to your presence. That framing made every decision for us. Real instrument panels are dense but calm, so the design leans on one green, one cyan, one warning amber against near-black #04070a. Everything moves, but slowly, at instrument tempo. And nothing on the page is an image: every visual is drawn by code, live, at 60 fps.

THE ACTUAL TECHNIQUES

• CANVAS 2D × 2 SCOPESThe proximity radar and the orbital map are plain Canvas 2D — no WebGL, no libraries. The radar uses createConicGradient for the sweep decay; blip brightness is computed from angular distance behind the sweep line. The orbital map draws a wireframe Moon (parametric ellipse meridians), a tilted elliptical orbit, and a 110-point trailing path with quadratic alpha falloff.
• ONE SHARED SIMULATIONAltitude on the telemetry panel is derived from the same orbital phase that positions the spacecraft on the map, and velocity is derived from altitude — so the instruments agree with each other, which is what makes the console feel real.
• rAF TELEMETRY TICKERSEach channel is base + slow sine + fast sine + noise, sampled every 120 ms inside requestAnimationFrame and drawn to a 46-sample ring-buffer sparkline.
• CORNER-BRACKET SYSTEMThe HUD frames are one CSS utility class: eight positioned linear-gradient layers on a single ::before, sized by custom properties, recolored globally during alerts by swapping one variable.
• ALERT CHOREOGRAPHYA caution event is a timed script: body class flips the bracket color to amber, the O₂ channel dips via an easing depth value, a debris contact appears on radar, six scripted comms lines play out, then everything resolves. It also runs on demand from the RUN CAUTION DRILL button.
• ZERO DEPENDENCIESNo frameworks, no build step. Three vanilla JS files, one stylesheet, fonts from bunny.net (Chakra Petch + IBM Plex Mono). prefers-reduced-motion swaps animation for 1 Hz updates and skips the boot sequence.

THREE PASSES

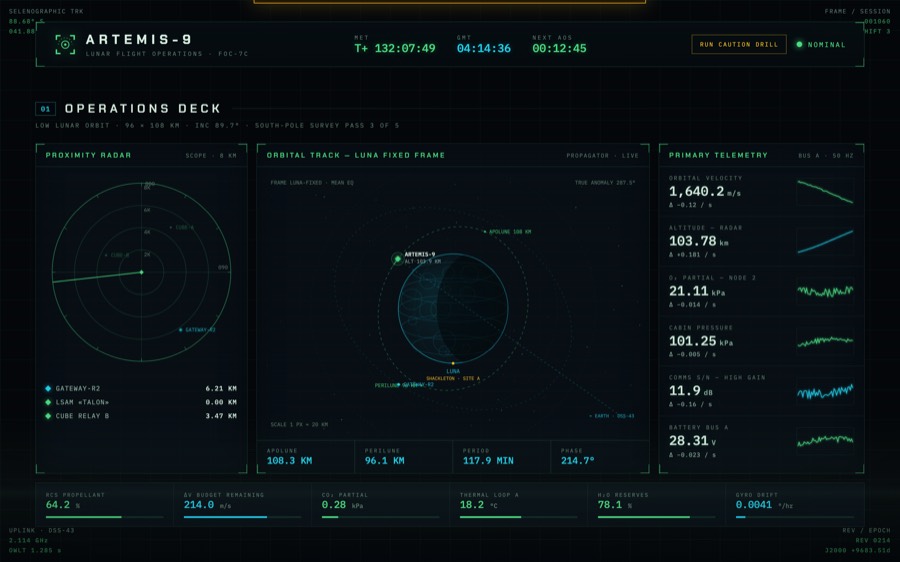

PASS 1 — STRUCTURE

Built the full console in one sitting: boot sequence, both scopes, six telemetry channels, timeline, crew biomed, comms loop, systems grid, brief. The screenshot caught two real bugs — an amber sliver of the hidden alert banner leaking at the top edge, and the fixed corner readouts clipped behind the sticky header.

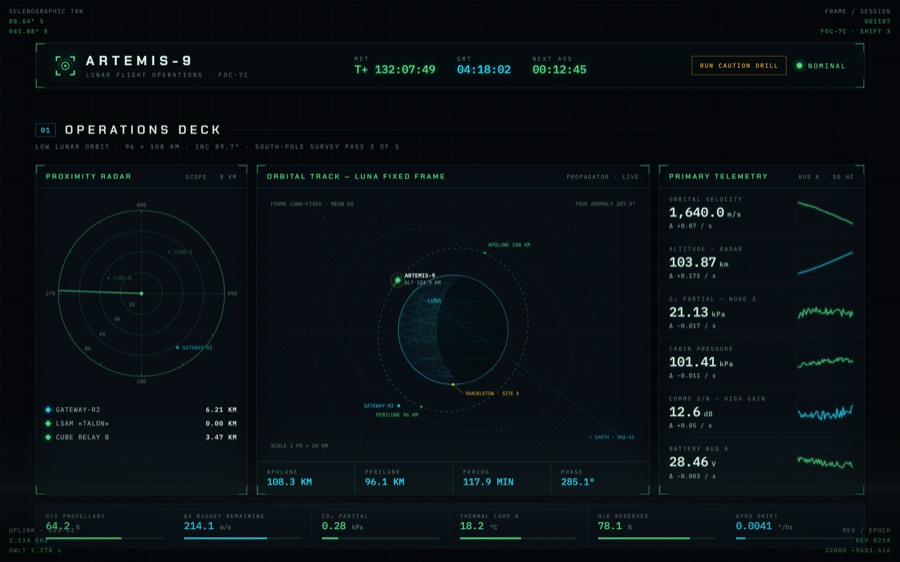

PASS 2 — CRITIQUE

Fixed the banner, un-stuck the header so the HUD corners own the viewport, moved radar range labels onto a diagonal so they stop colliding with bearing marks, and pushed the apolune/perilune labels outward along their radials. Wired the orbit footer to the live propagator so the phase readout agrees with the map.

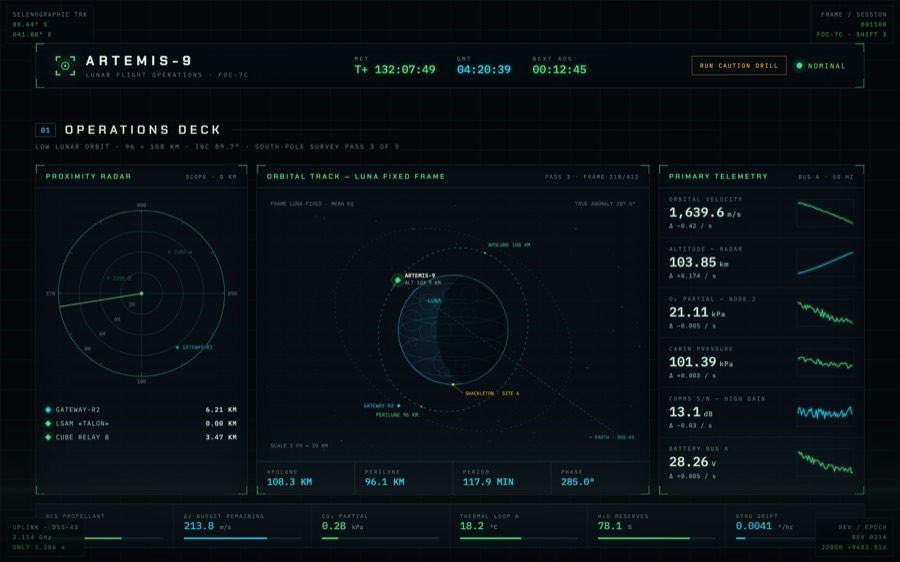

PASS 3 — POLISH

Detail density: dark backdrop pills behind the corner readouts so they overlay content instead of colliding with it, a live survey-frame counter on the orbit panel, drifting contact ranges on the radar list, timeline hover states, and a final 390 px mobile audit.

PROMPT YOUR OWN

Everything here is reproducible by an AI agent. The prompt that matters looks like this:

The last line is the one most people skip. The difference between a demo and this page is the loop: render, look, criticize, fix, repeat.
